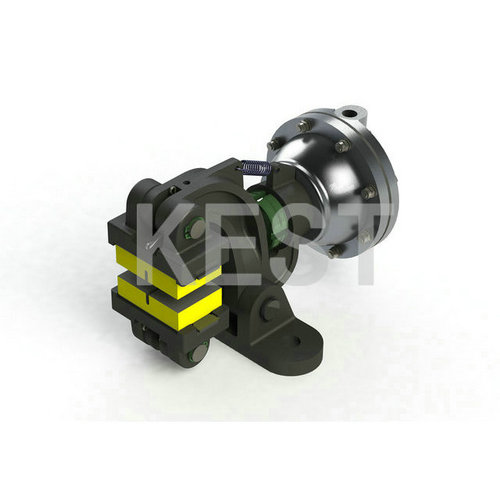

技術數據
制動力F：
KB3-1 670 N 6bar
KB3-2 1800 N 6bar
KB3-3 3550 N 6bar
加速力矩
=F*[制動盤半徑-0.032]=Nm
**總磨損: 14 mm
新摩擦片厚度: 16 mm
持續滑動時的熱容量Qc: 1.7 kW
雙倍制動墊型持續滑動時的熱容量
Qc: 2.7 kW
Technical data
Braking force F:
KB3-1 670 N at 6 bar
KB3-2 1800 N at 6 bar
KB3-3 3550 N at 6 bar
Dynamic torque
= F*(disc radius in m - 0.032) = Nm
Max total wear: 14 mm
Thickness of new lining: 16 mm
Continuous thermal capacity
Qc: 1.7 kW
Continuous thermal capacity
for double pad version Qc: 2.7 kW

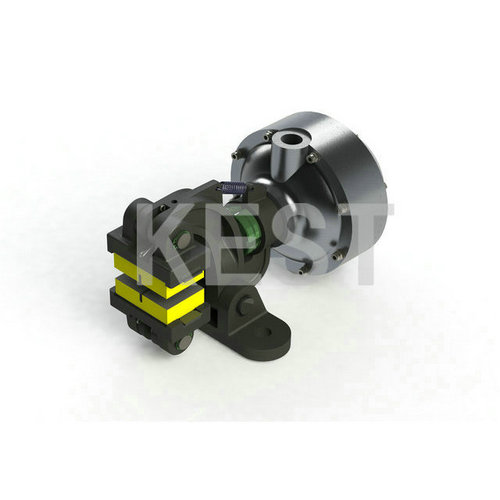

技術數據
制動力F：
KBS3-1 1300 N
KBS3-2 2600 N
動態力矩
=F*[制動盤半徑-0.032]=Nm
**總磨損: 14 mm
新摩擦片厚度: 16 mm
持續滑動時的熱容量Qc: 1.7 kW
雙襯墊型持續滑動時的熱容量Qc: 2.7 kW
松鉗**小氣壓: 5 bar
圖表顯示數據依據如下條件:
3-1裝有4根彈簧
3-2和3-3裝有8根彈簧
若要減少力矩值可相應地減少?gòu)椈蓴?shù)量：
3-1 2根彈簧
3-2和3-3 6、4、2根彈簧
圖表指示了每?jī)珊撩啄Σ疗p的力矩變
化情況。
如需恢復到相應額定力矩，請按照使用手冊
說明進行調整。
Technical data
Braking force F:
KBS3-1 1300 N
KBS3-2 2600 N
Dynamic torque
= F*(disc radius in m - 0.032) = Nm
Max total wear: 14 mm
Thickness of new lining: 16 mm
Continuous thermal capacity Qc: 1.7 kW
Continuous thermal capacity
for double pad version Qc: 2.7 kW
Minimum release pressure: 5 bar
The torque values specified
are obtained with n. 4 springs for 13-1,
n. 8 springs for 3-2 and 3-3.
Torque proportionally less
are achievable with n. 2 springs for 3-1,
n. 6-4-2 springs for 3-2 and 3-3.
The diagram shows the torque
variation for 2 millimeters of lining wear.
Adjust according to ensure the
correct torque value is achieved.
